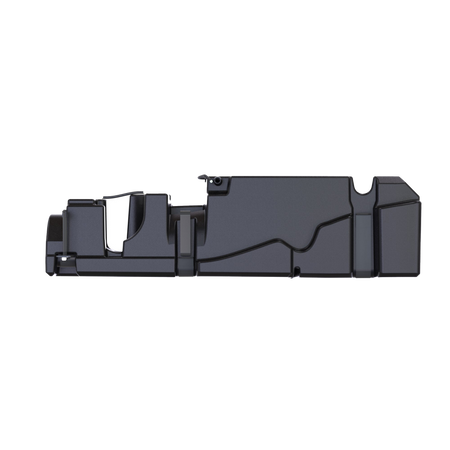

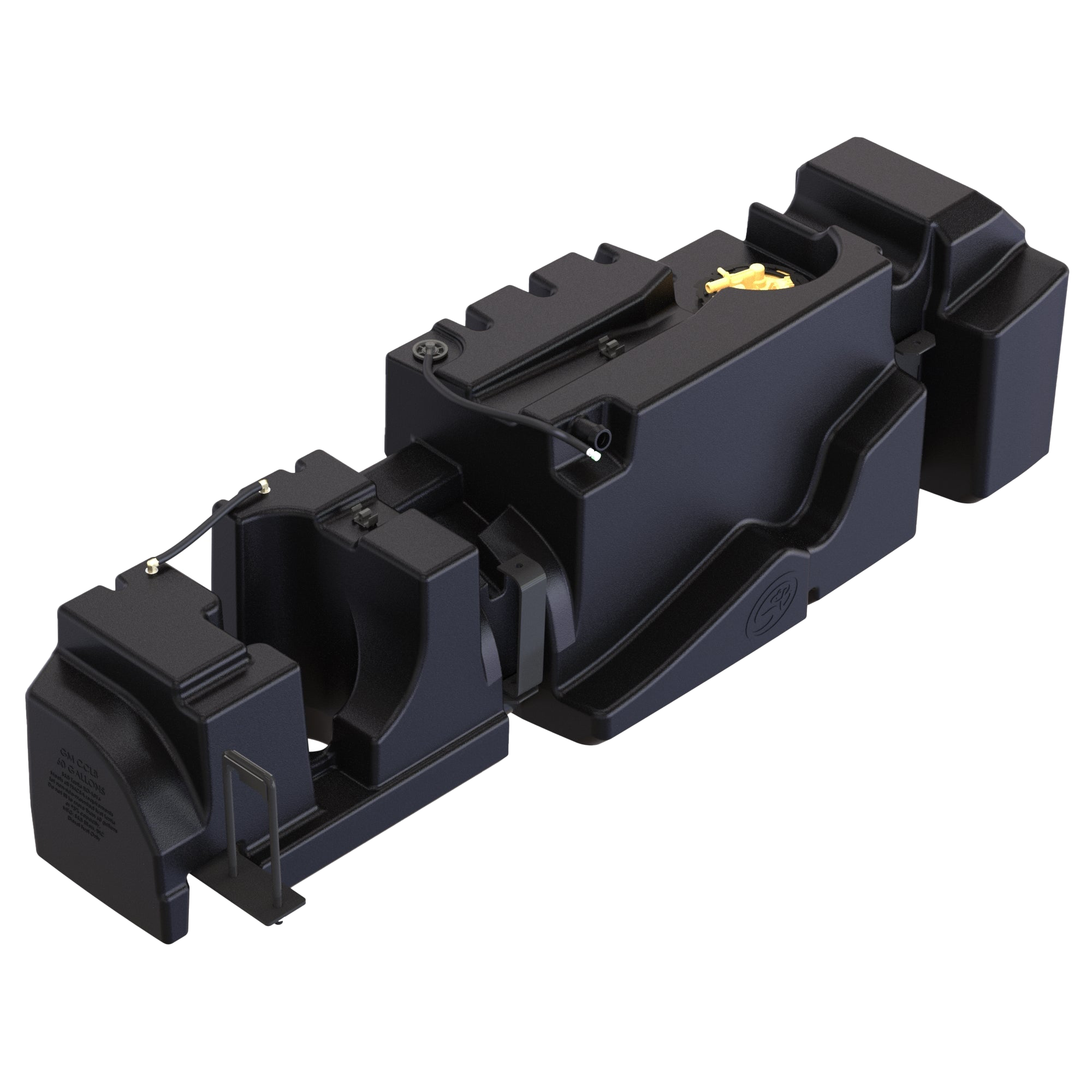

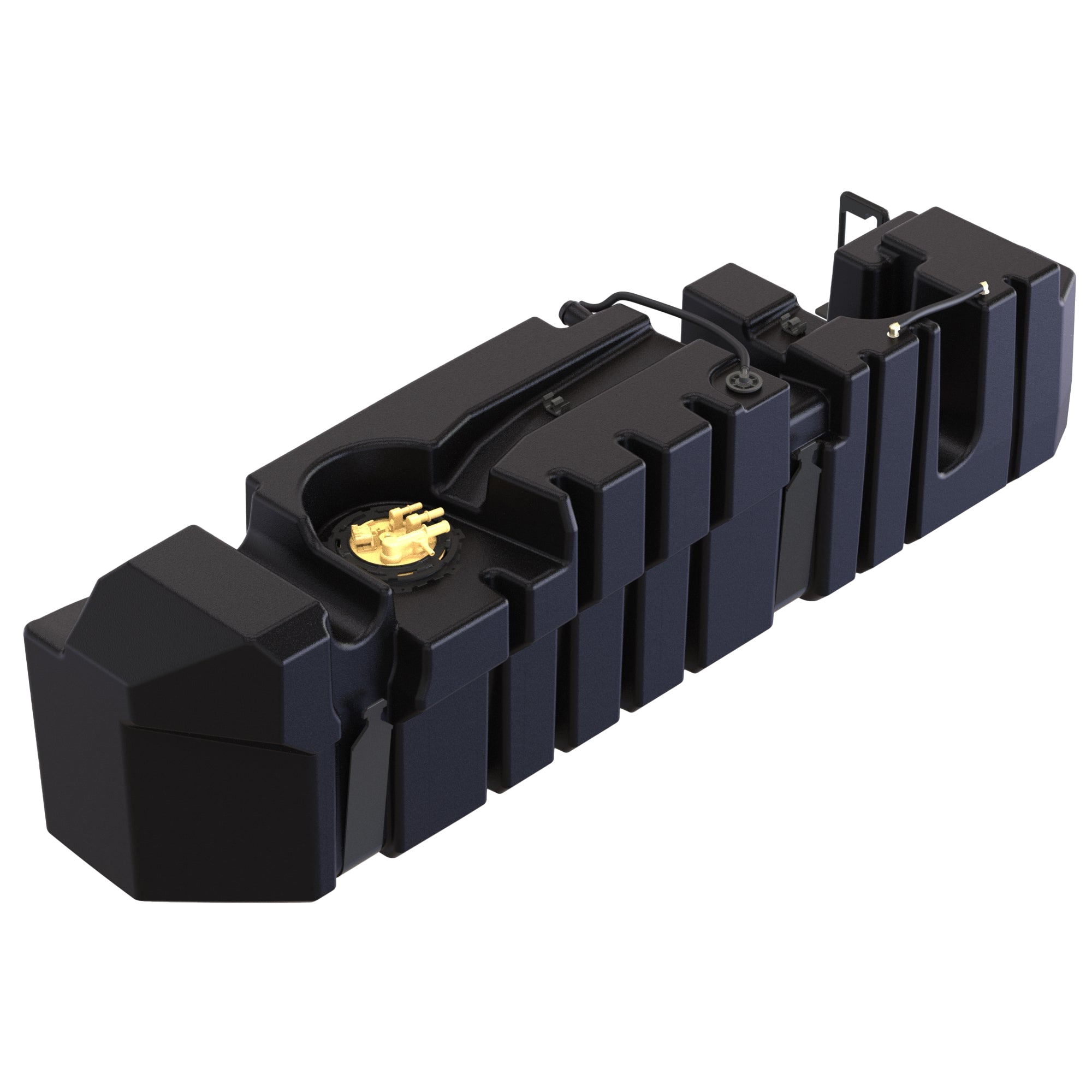

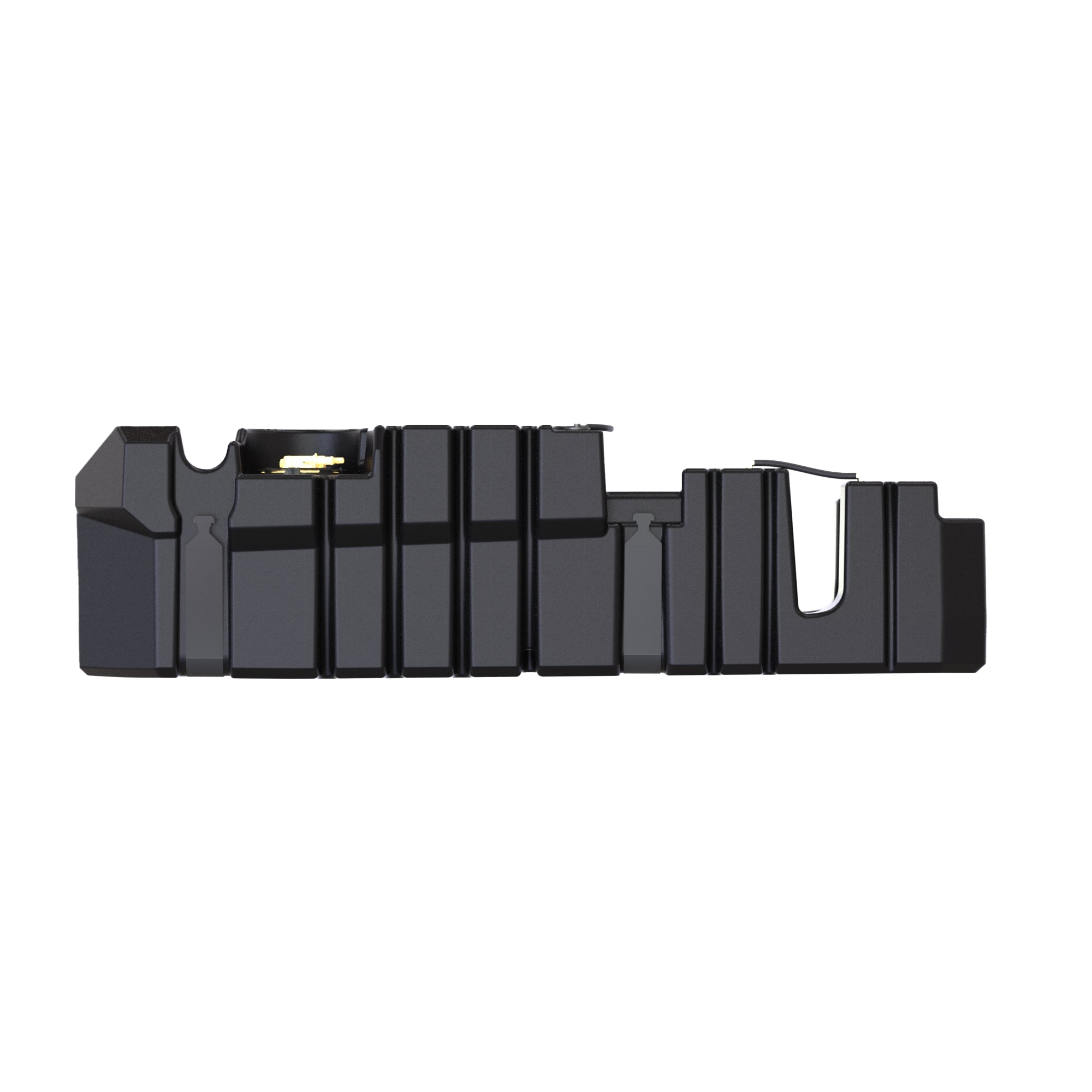

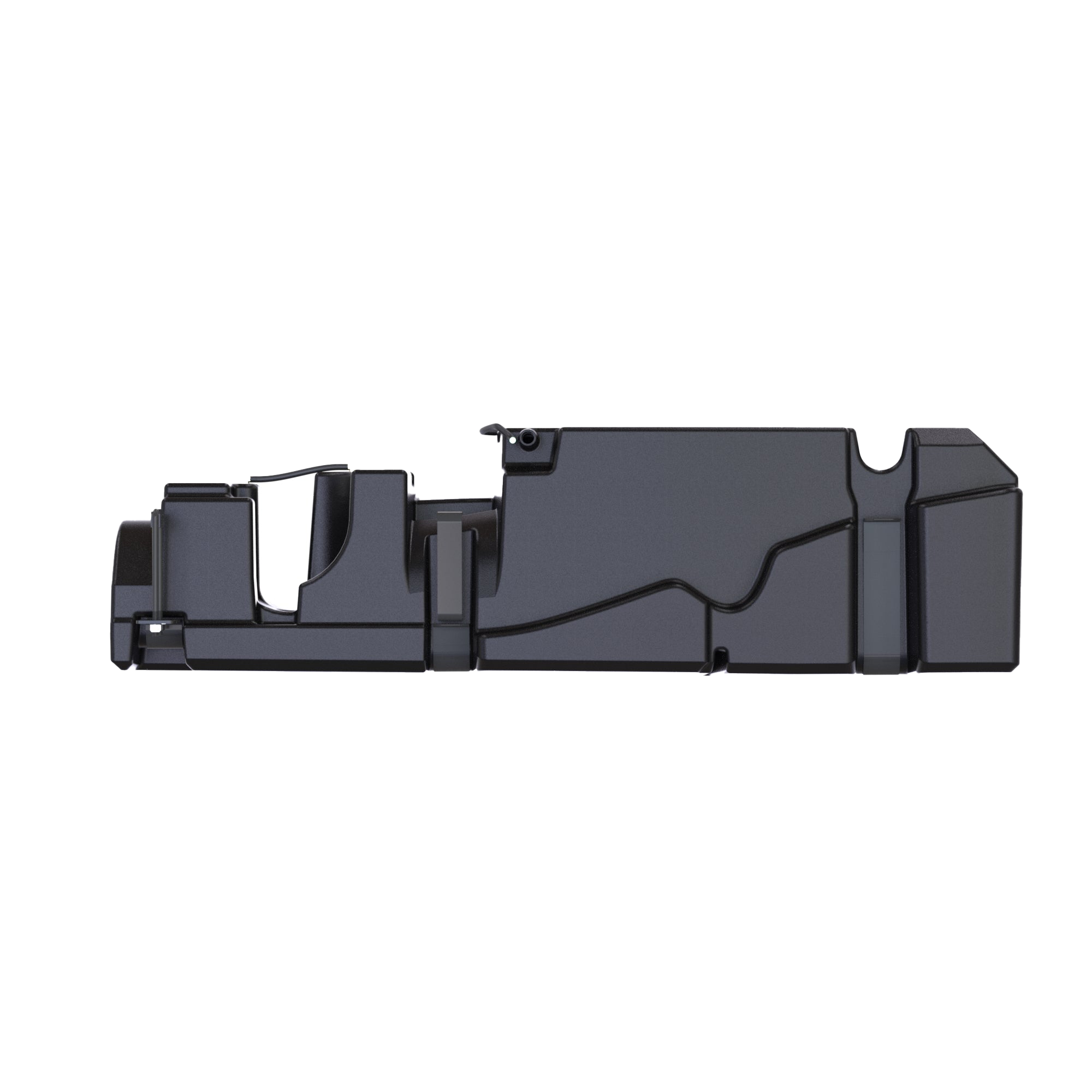

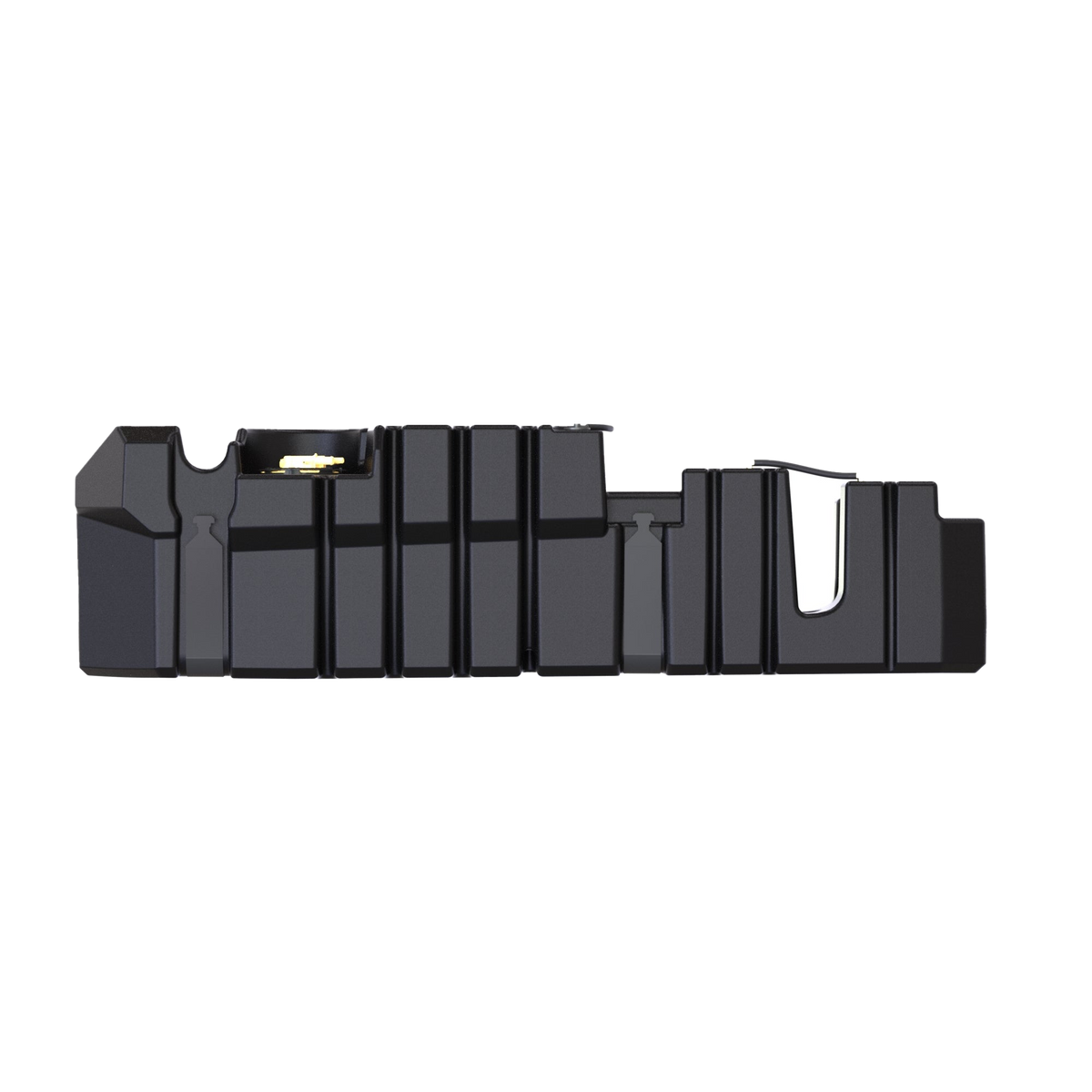

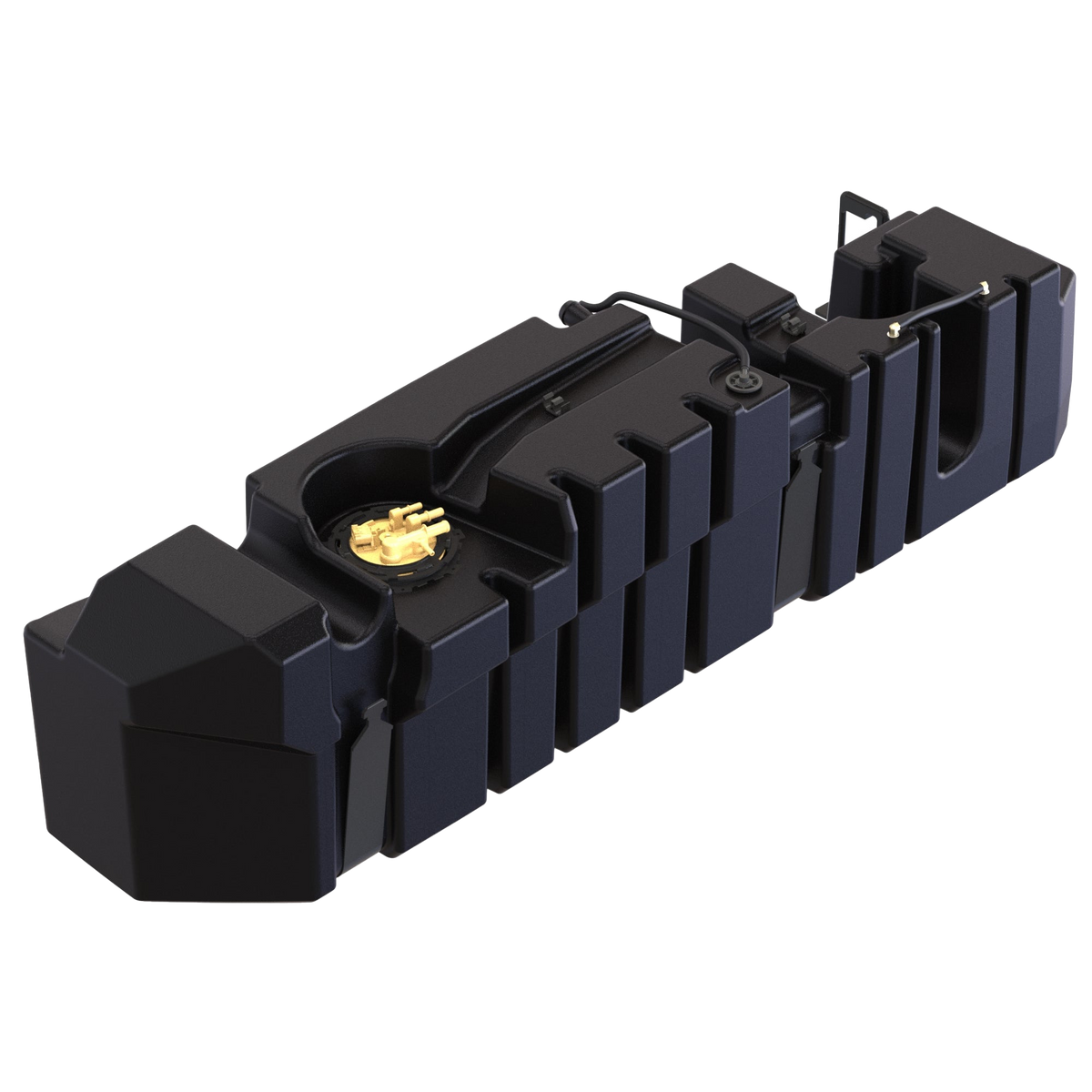

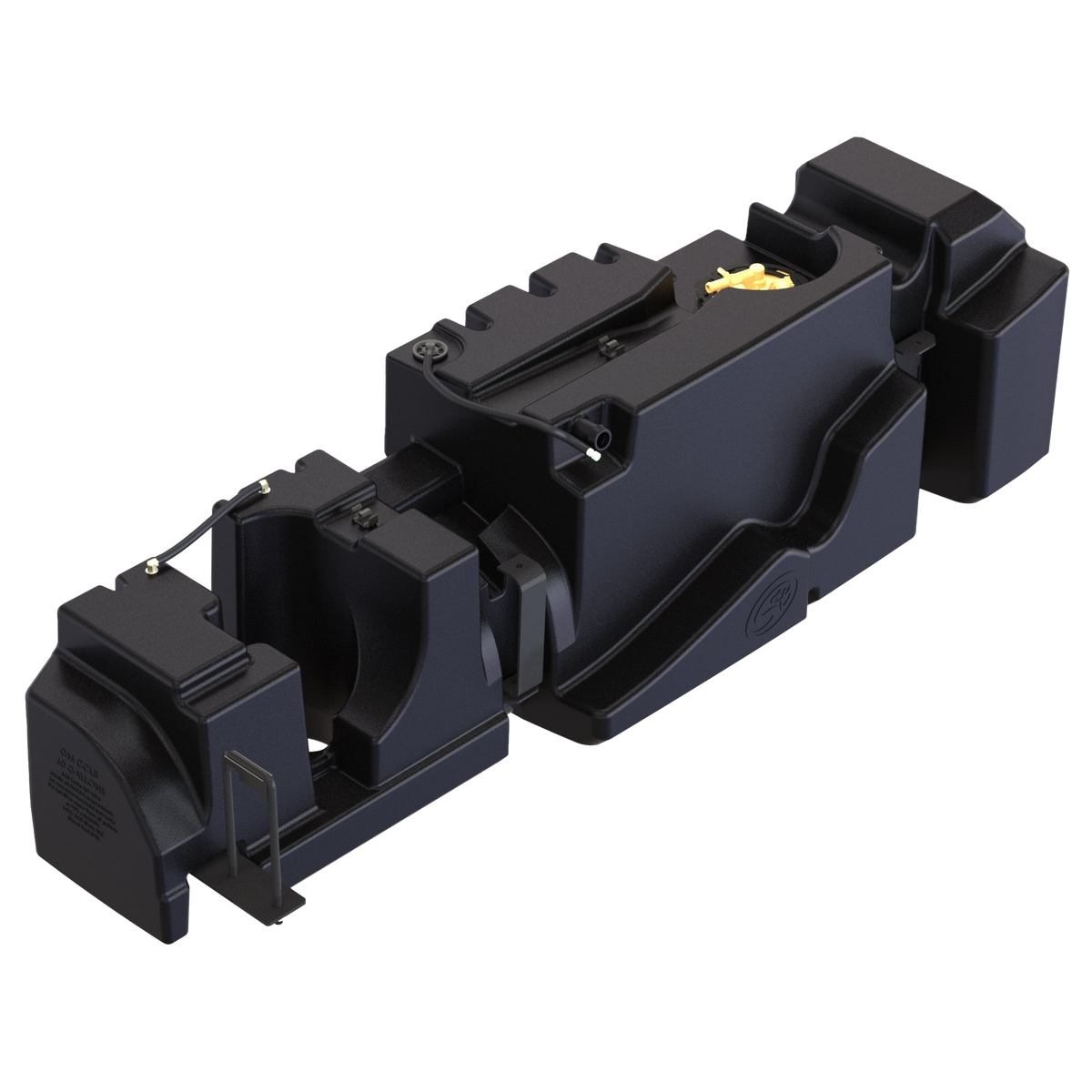

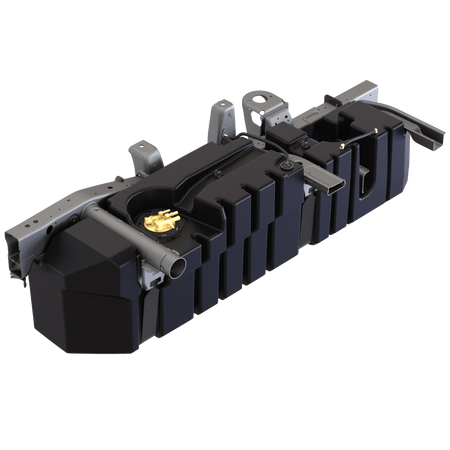

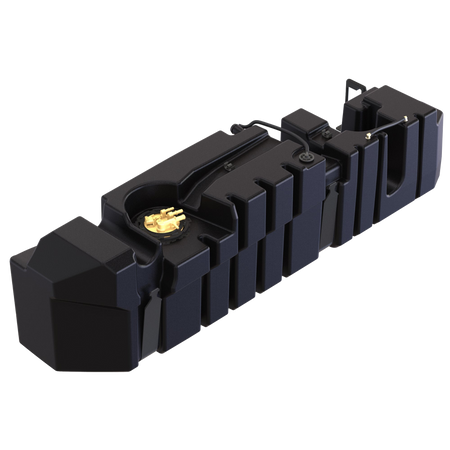

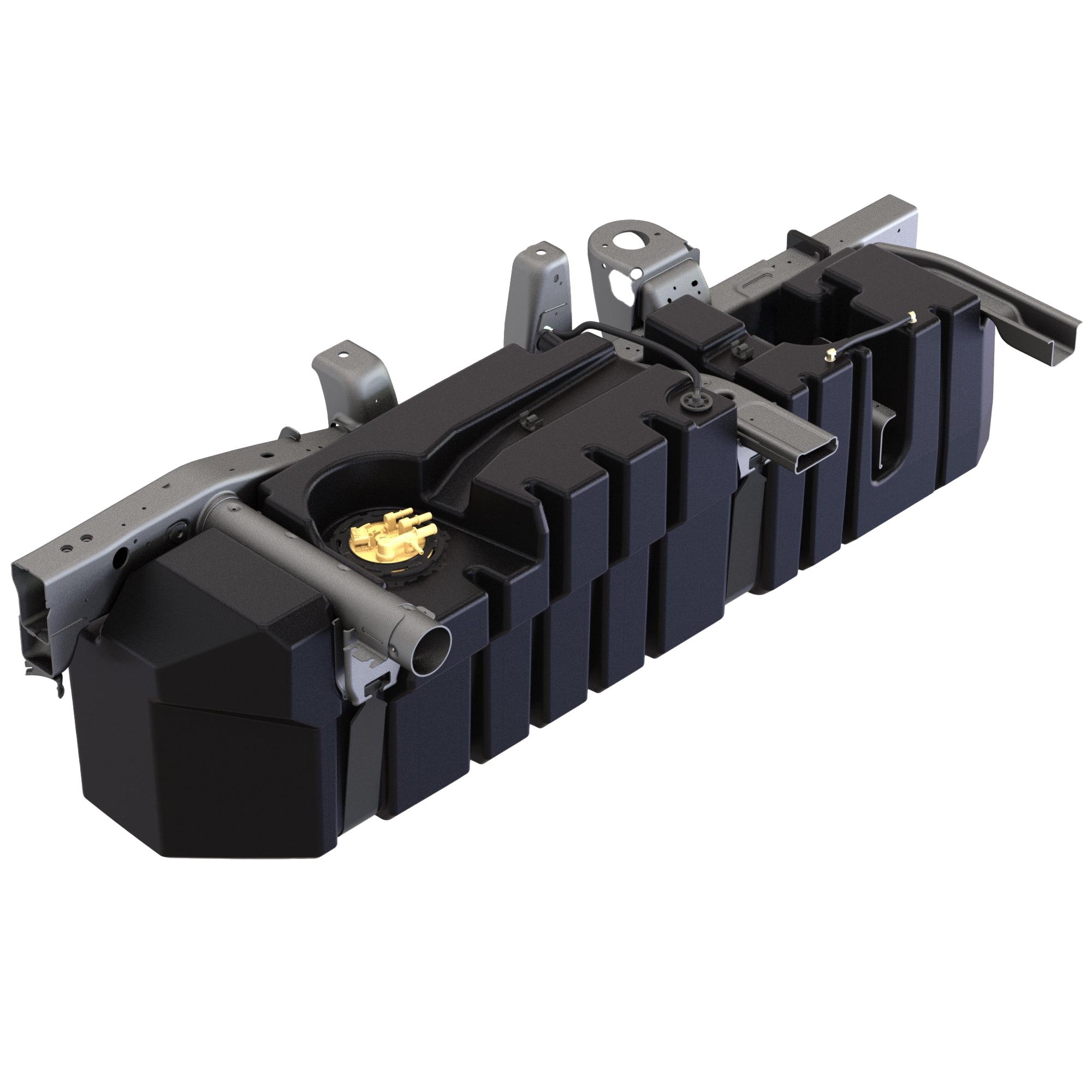

2020-2023 Duramax L5P S&B 60 Gallon Replacement Fuel Tank (10-1016-1)
Need to go farther? This direct replacement tank holds 60 gallons versus the OEM capacity of 36 gallons. This tank holds 5 gallons more than competitors allowing you to get where you need to go without wasting time stopping for fuel. Included are all the components to remove and replace your tank into the stock location using the included straps.
This tank is built with a built-in baffled design to reduce fuel sloshing. This helps to contain fuel around the fuel pick-up. The S&B Fuel Tank was designed to use the OEM locking ring. This ensures a perfect seal and securely retains the fuel pump in the tank.
These tanks are built to last and are made out of extremely strong crosslink polyethylene.
S&B replacement fuel tanks have a lifetime limited warranty for the original purchaser. If there is a problem with an S&B tank related to defect, materials or workmanship, S&B will replace it. All terms of the S&B Million Mile Limited Warranty also apply to S&B fuel tanks. Damage to an S&B fuel tank resulting from improper installation or use will not be covered by this warranty.
The distance to empty (DTE) on GM trucks can’t be reprogrammed, so it will show about half the mileage that is really left. This occurs with all aftermarket high-capacity fuel tanks. The fuel gauge will operate properly. When you fill up your tank, the fuel gauge will remain on full until about 4-5 gallons have been used and then the gauge will start to move normally. GM trucks monitor for an inoperative fuel gauge, so in some situations, until it starts to move, the truck’s computer will drop the gauge to empty to get the driver’s attention even though your tank is full. The gauge will return to its normal position after restarting the engine. Once the fuel level drops 4-5 gallons from full, the fuel gauge will return to its normal operation. The bottom of the S&B tank has more surface area than the OE, so there will be a greater fuel reserve when the low fuel indicator comes on. The nozzle at high flow fuel stations(truck stops) will not be able to fill automatically.
