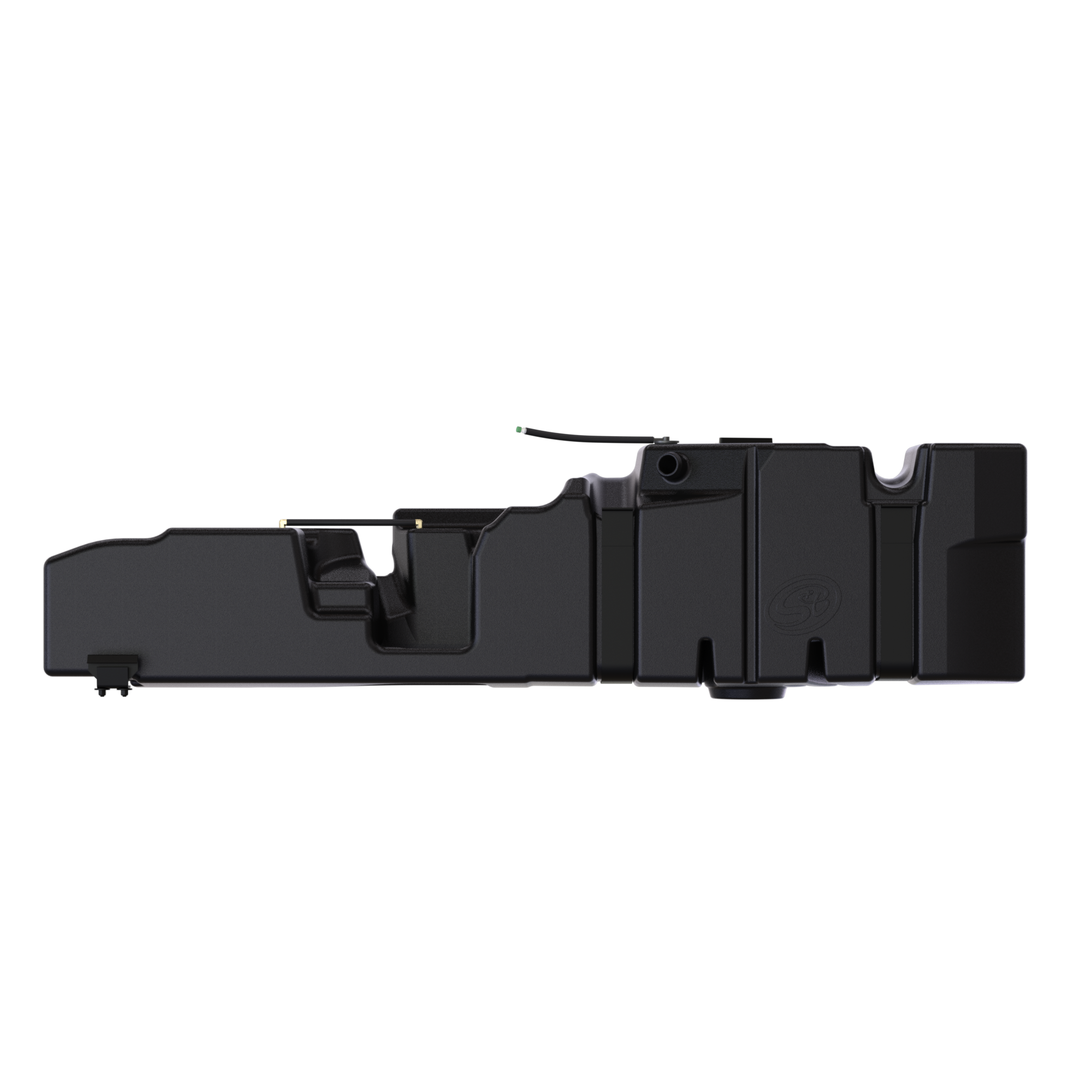

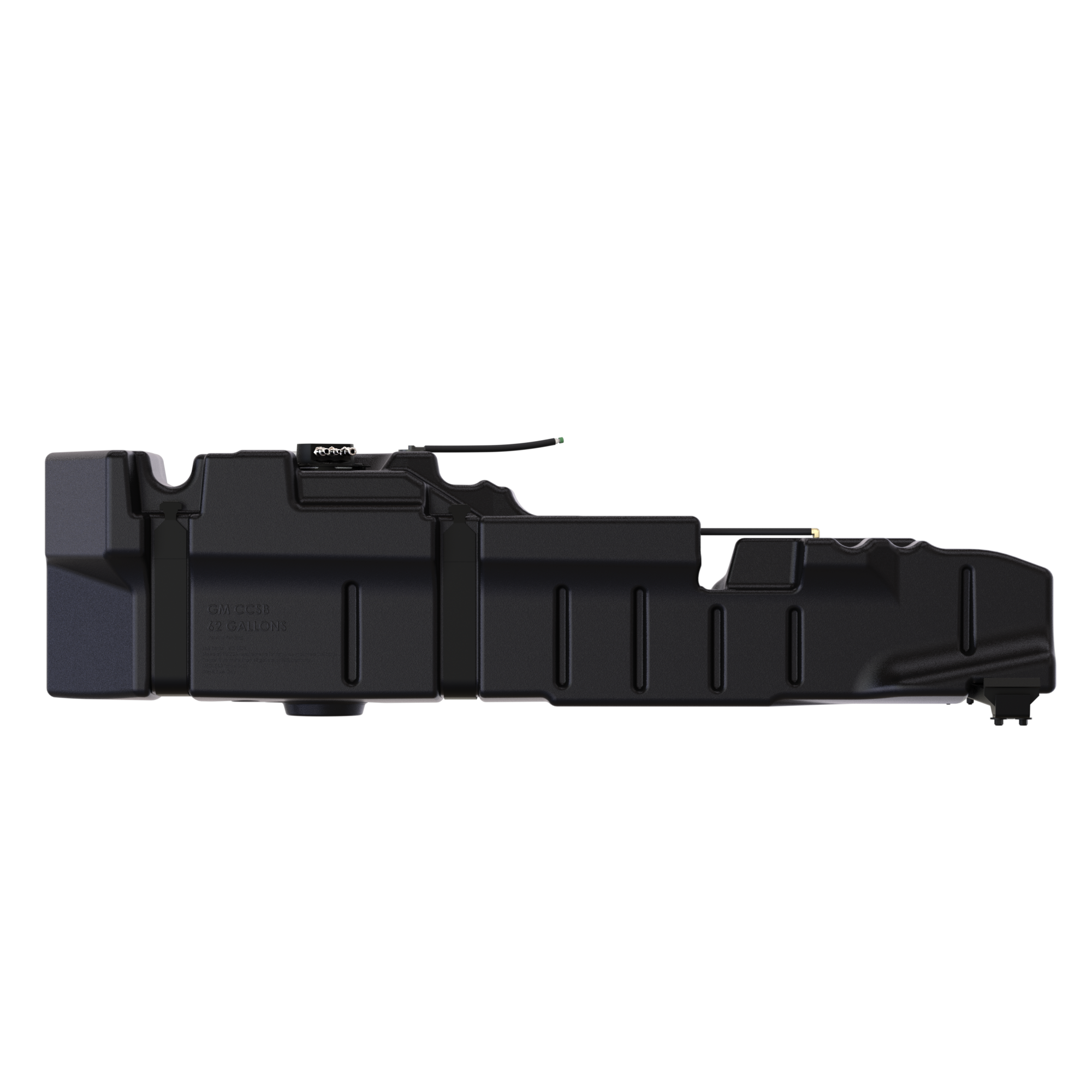

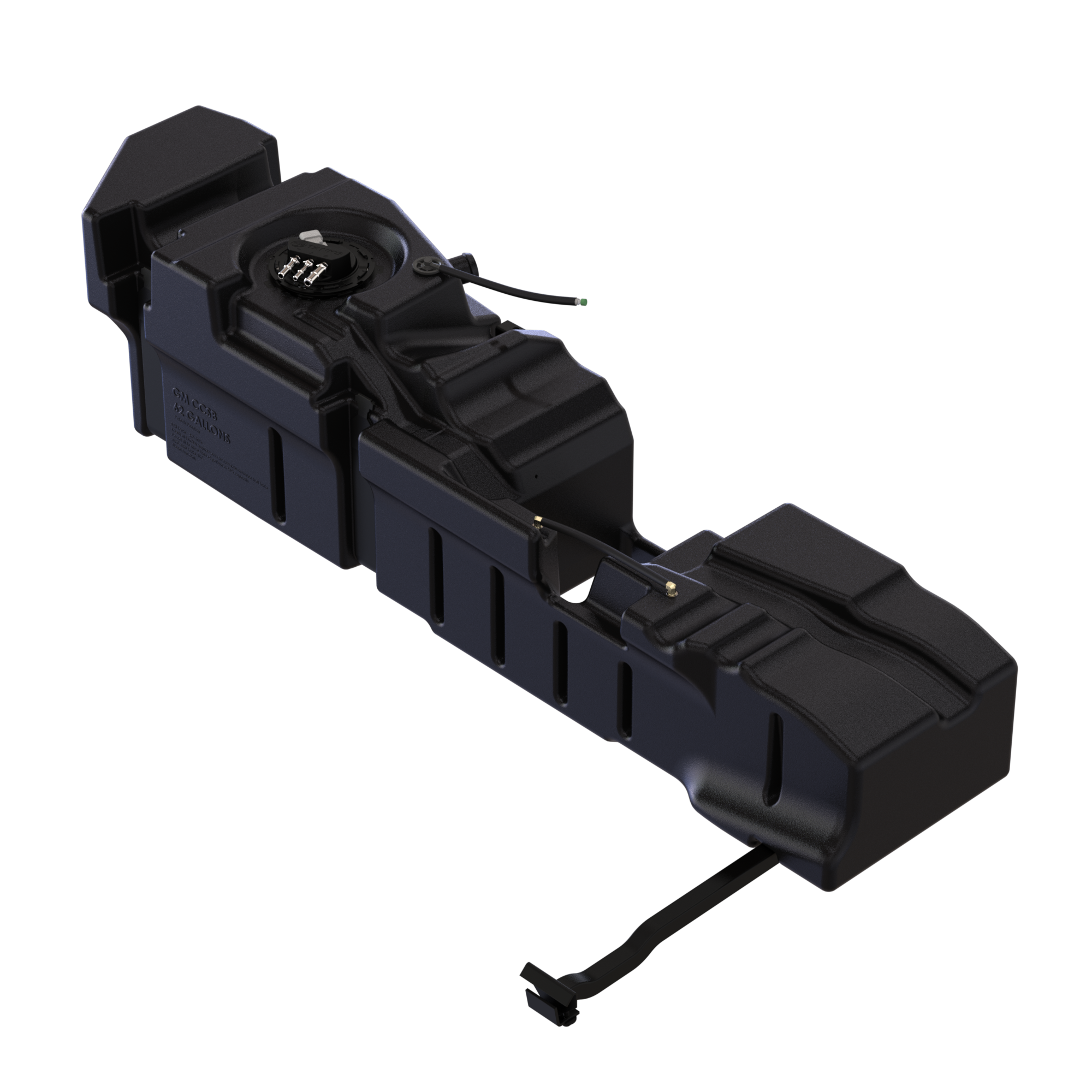

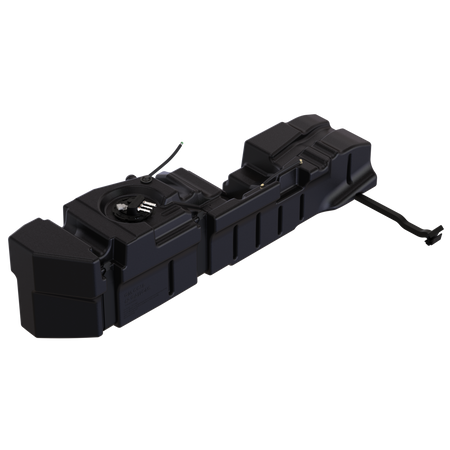

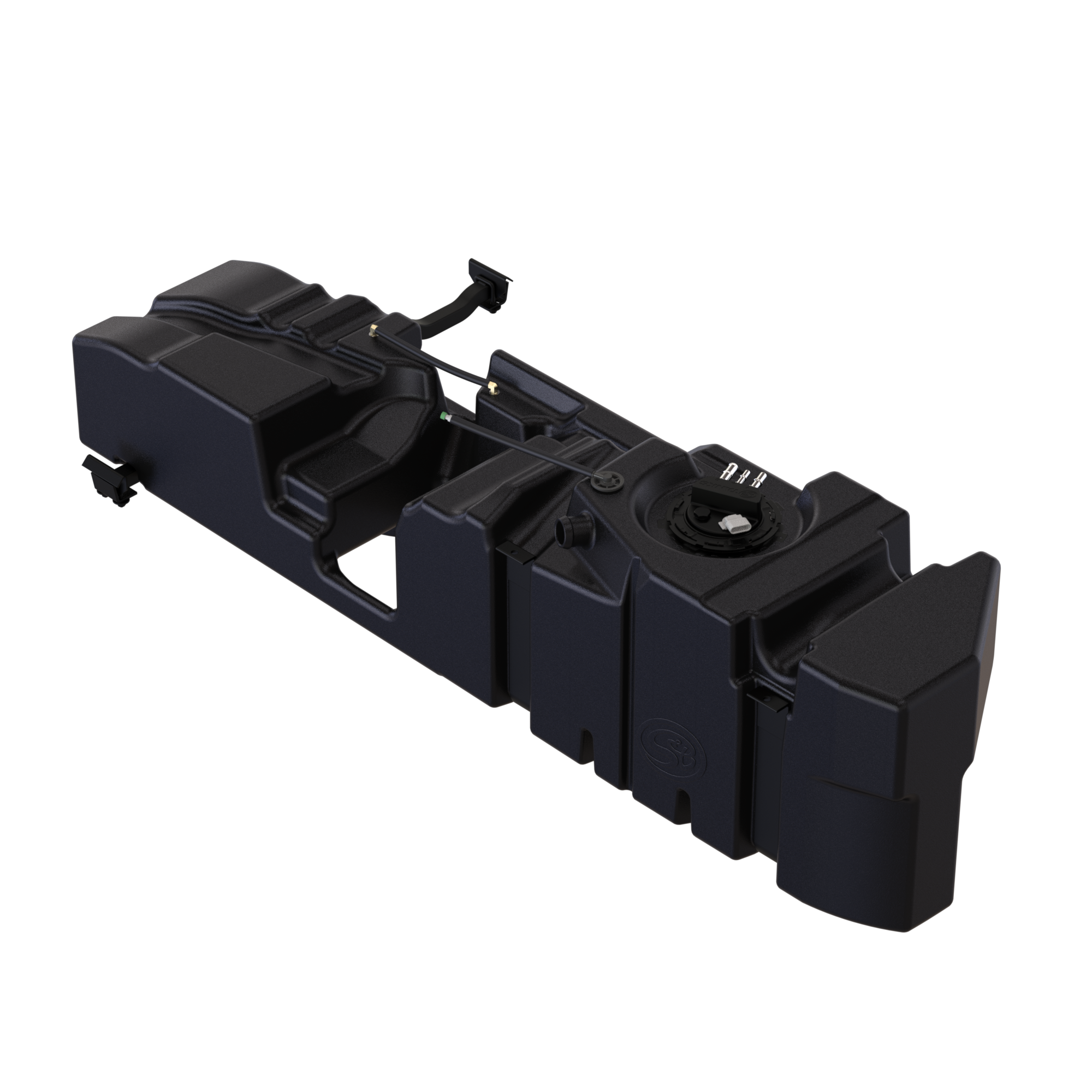

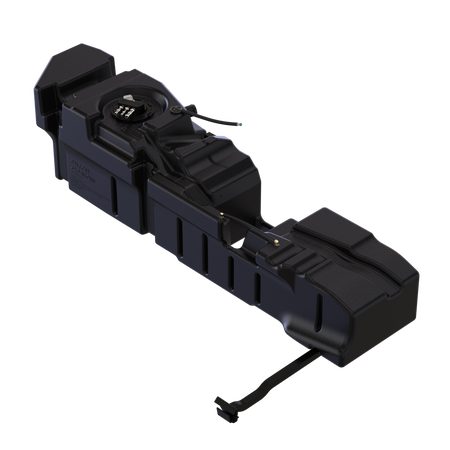

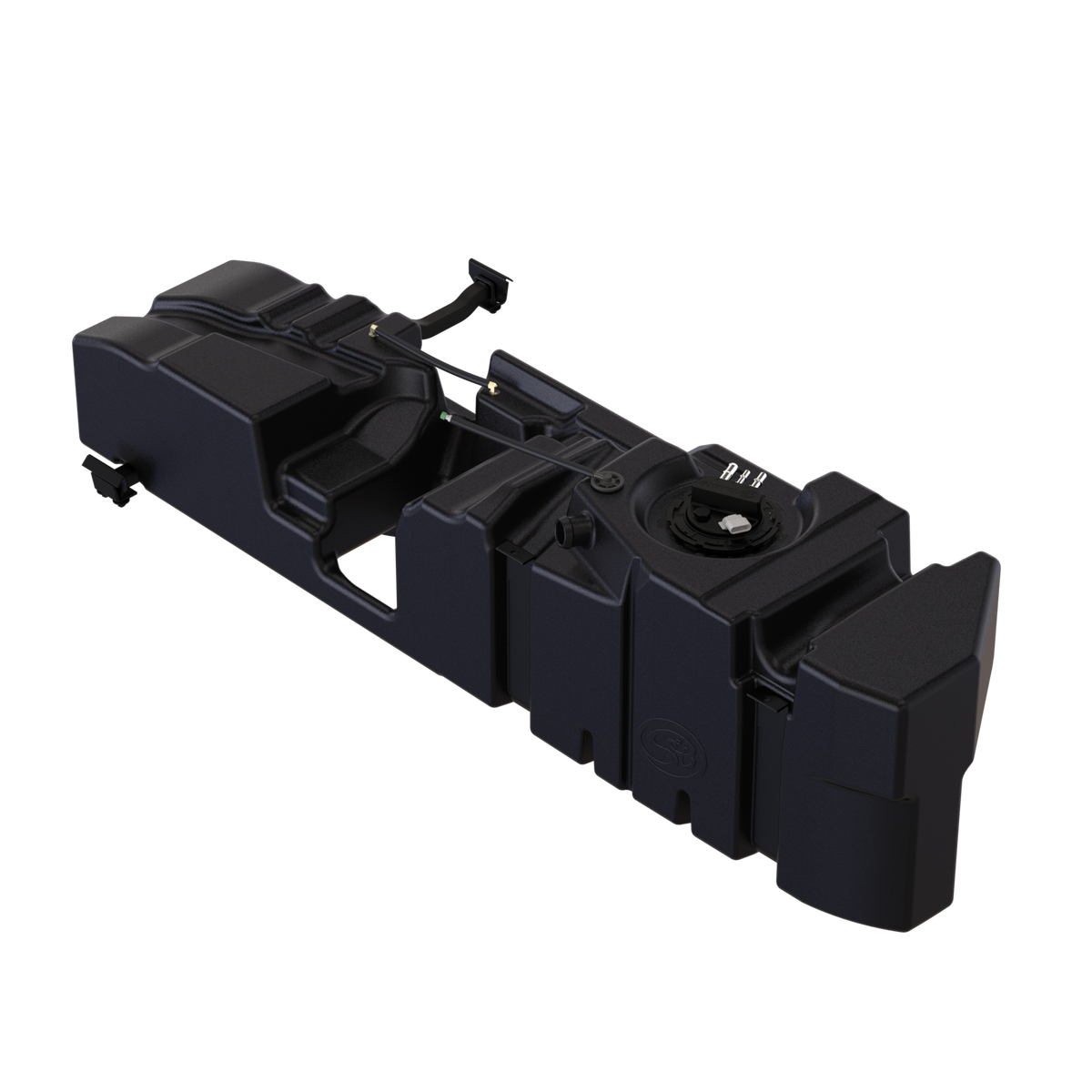

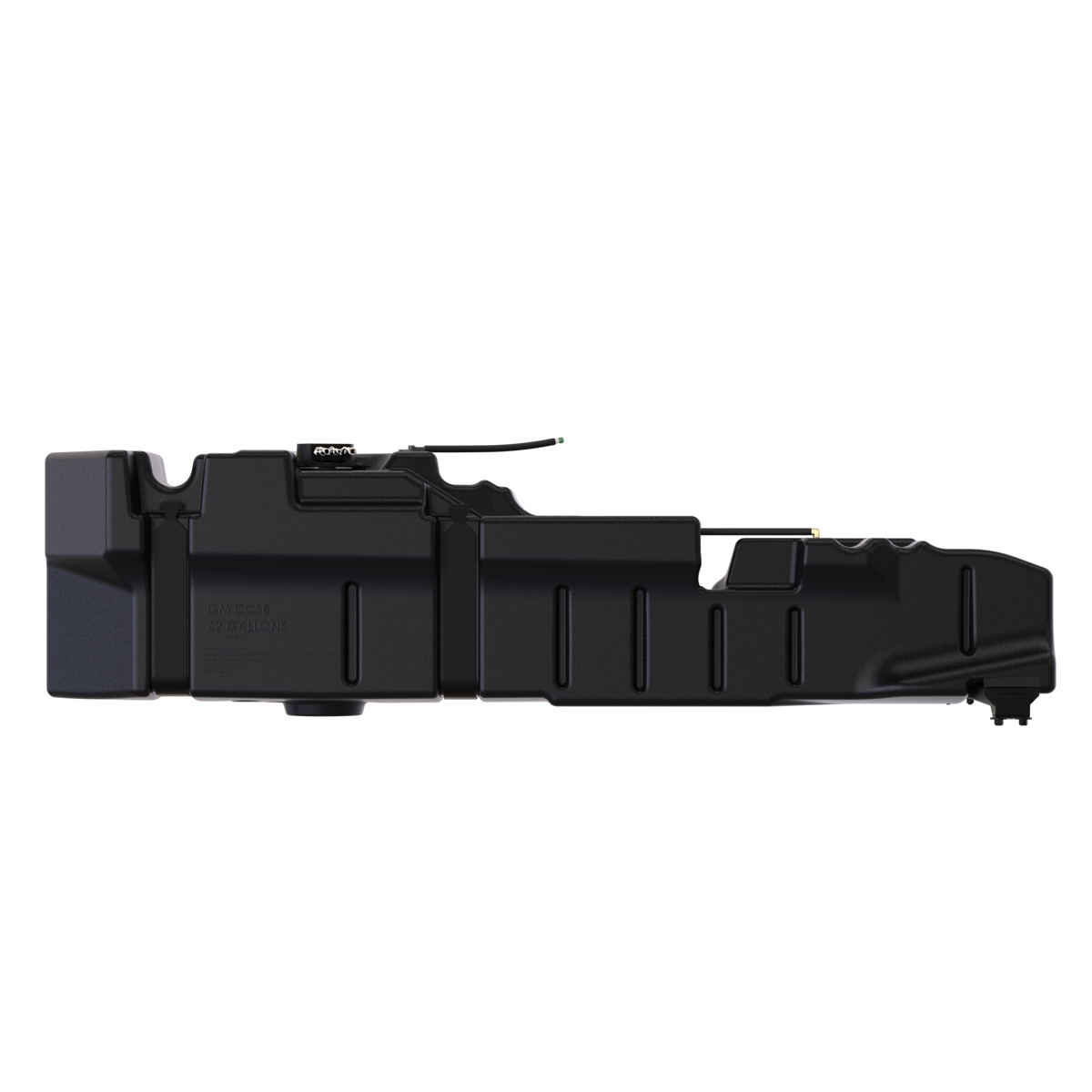

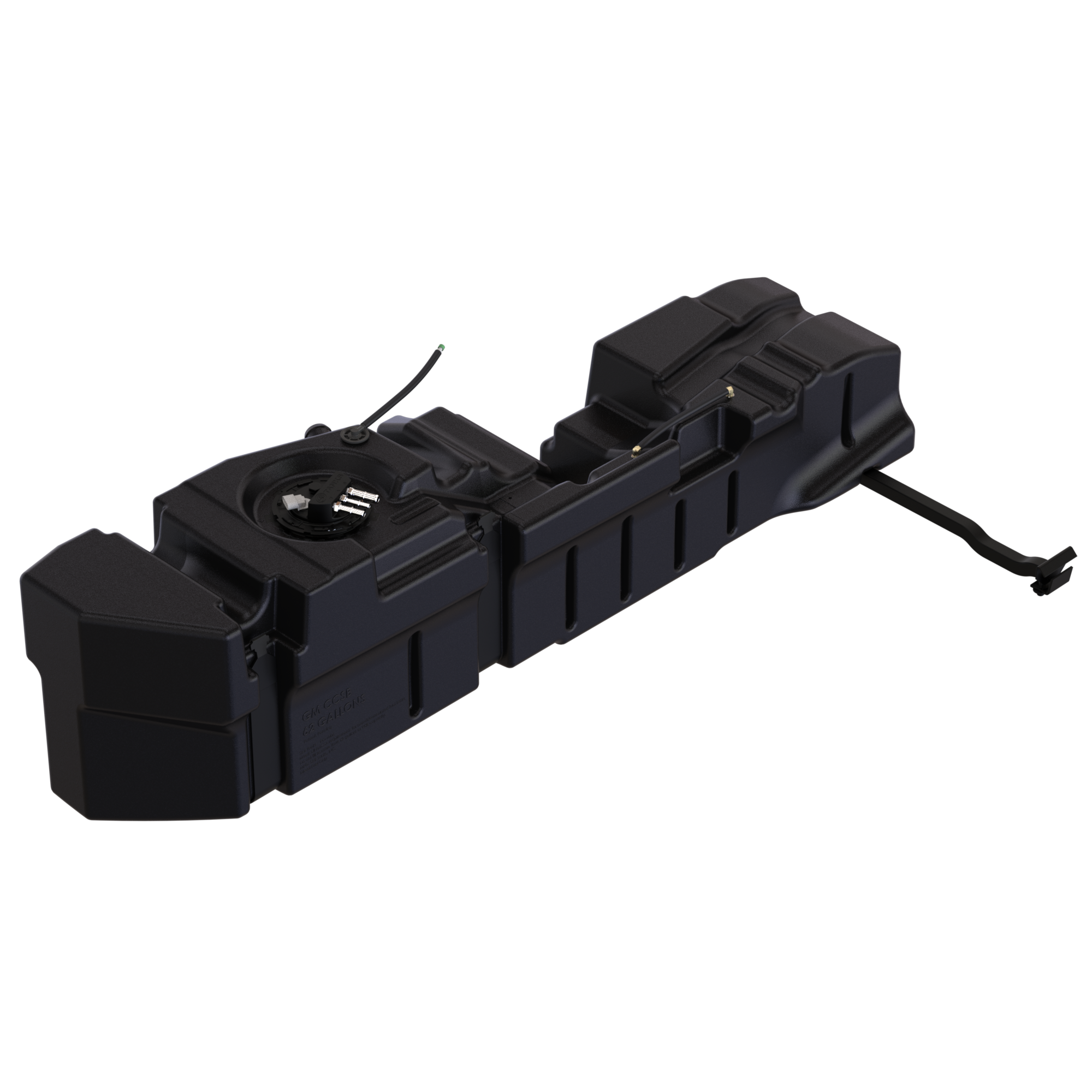

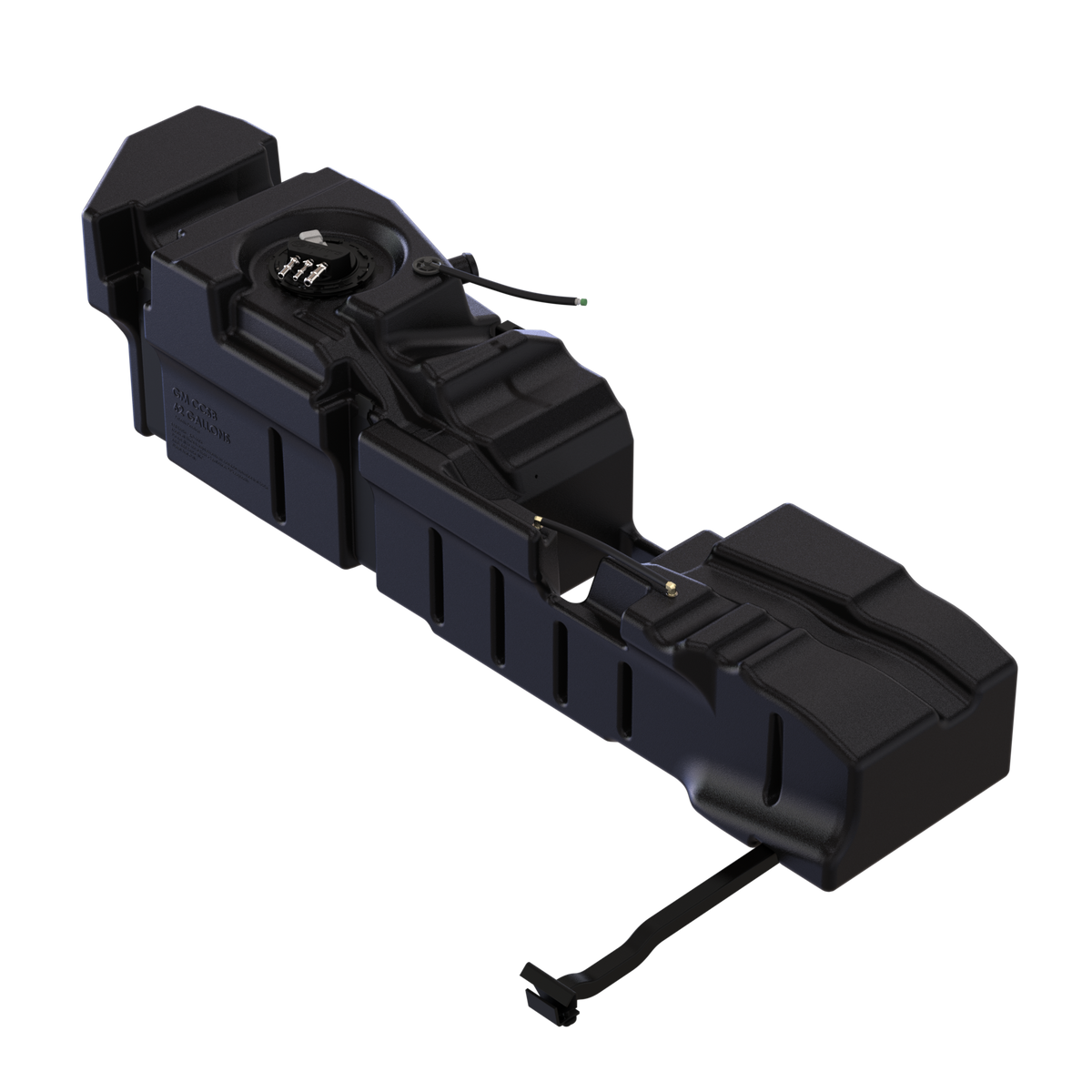

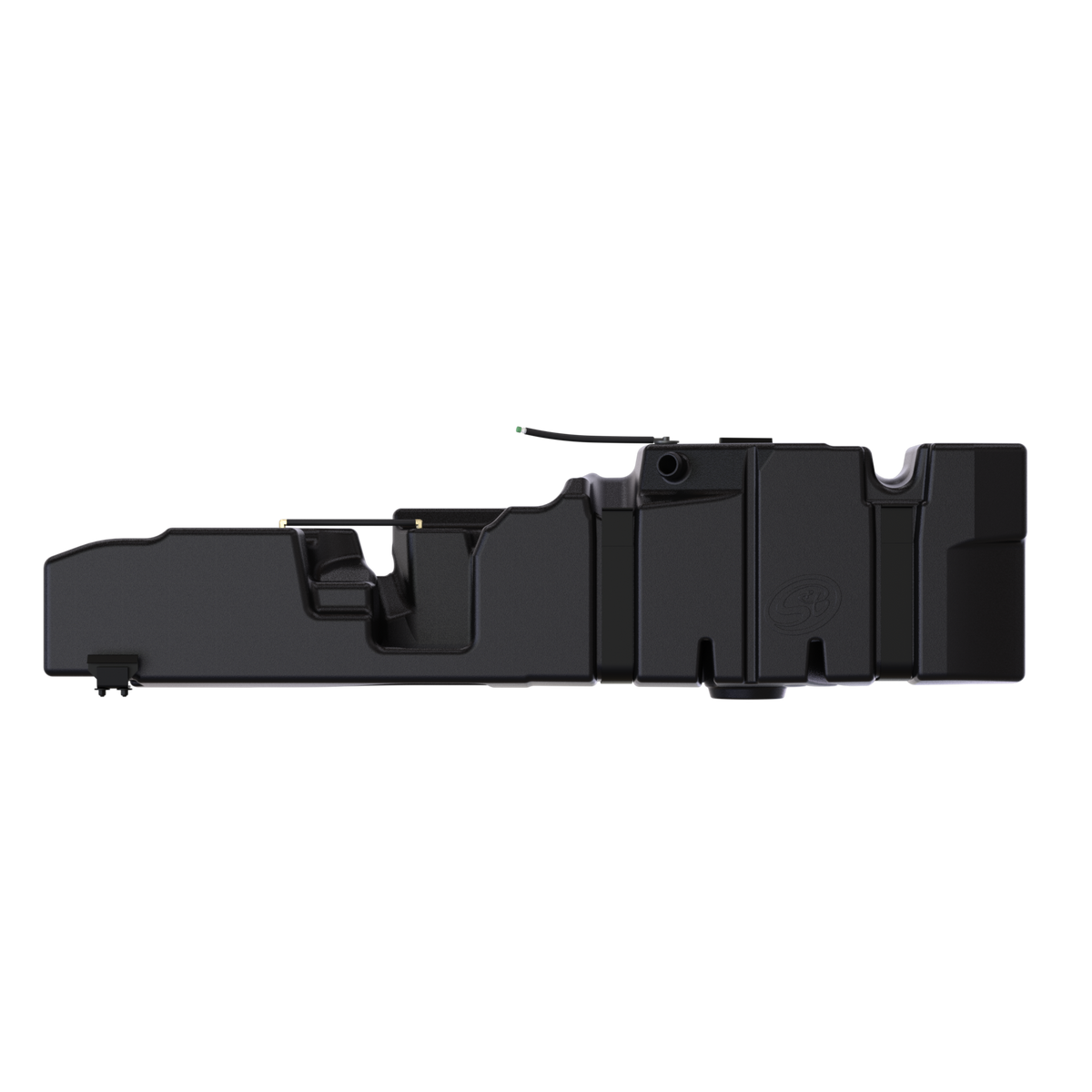

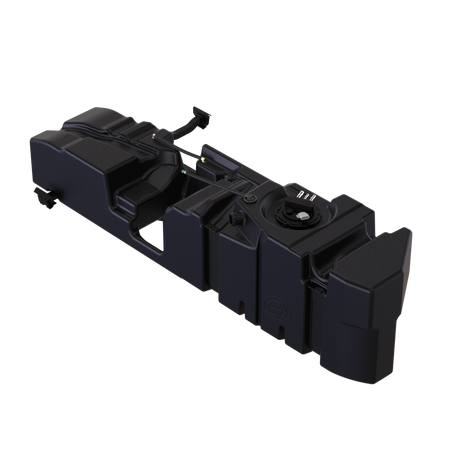

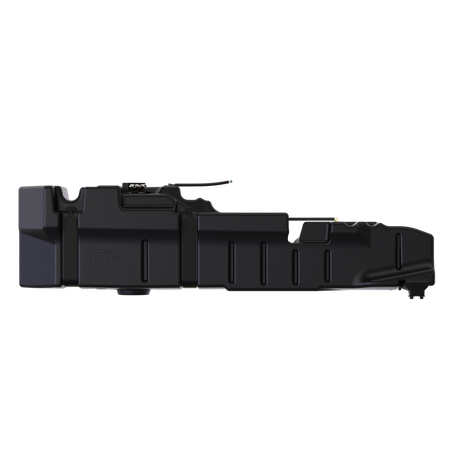

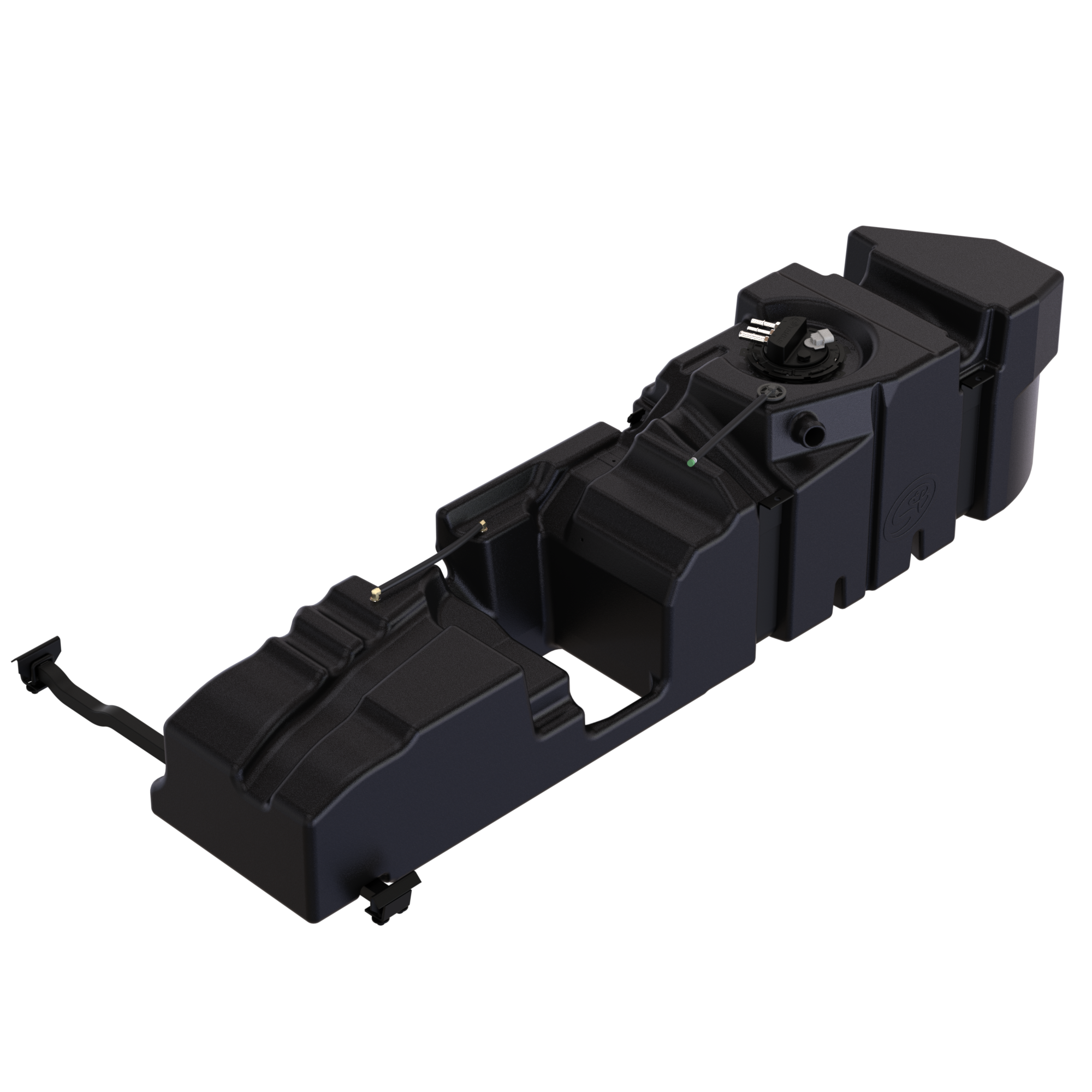

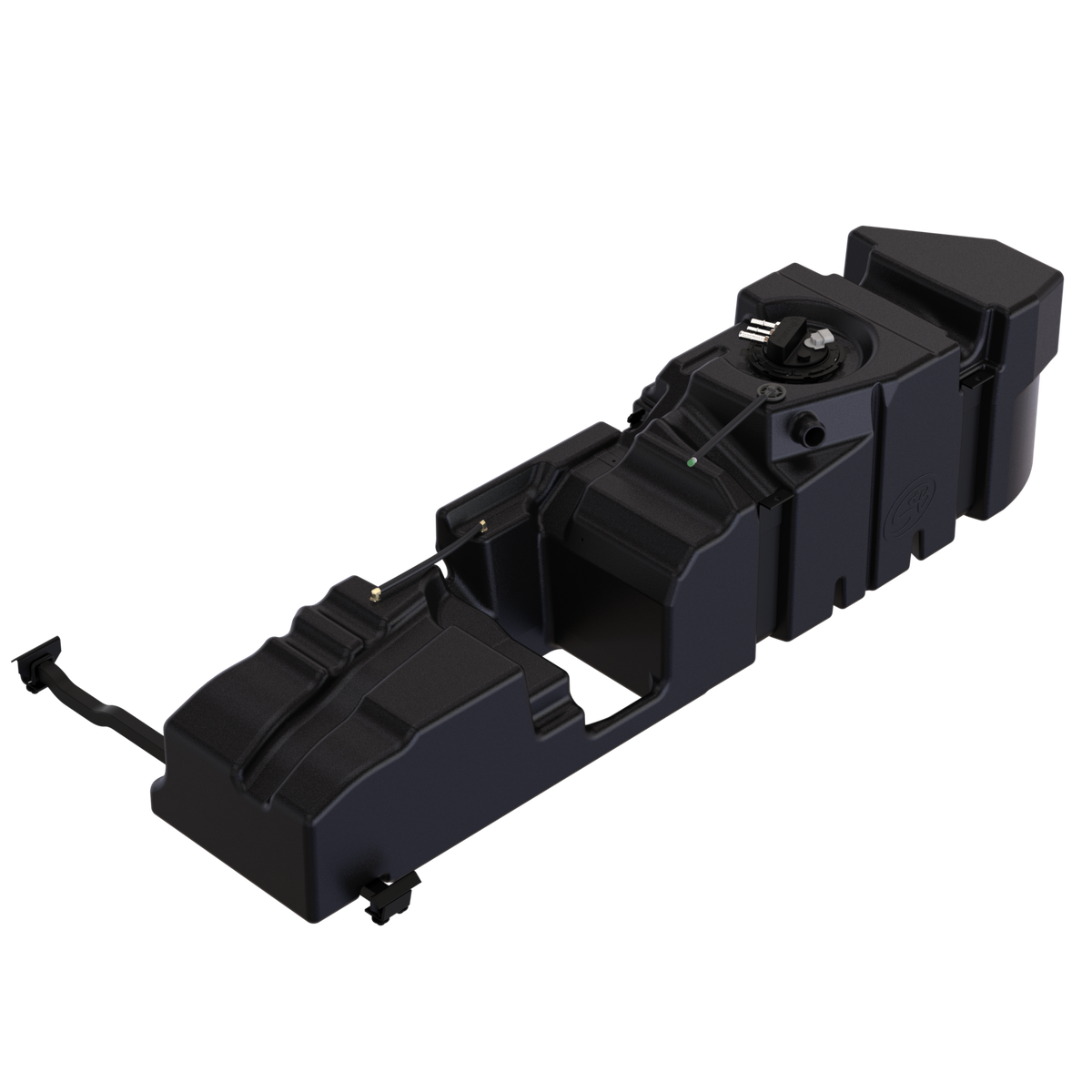

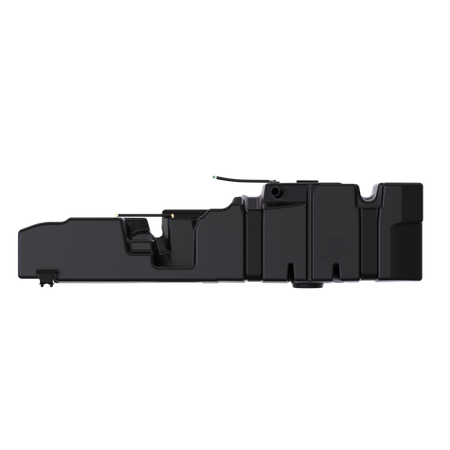

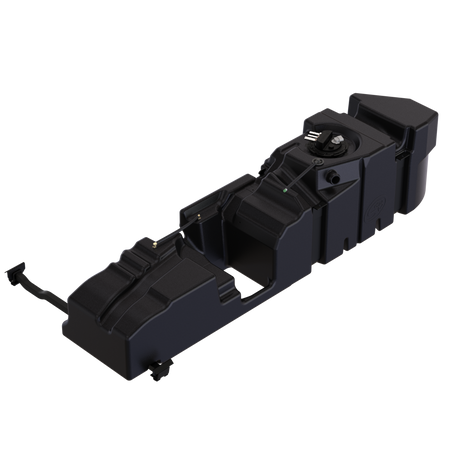

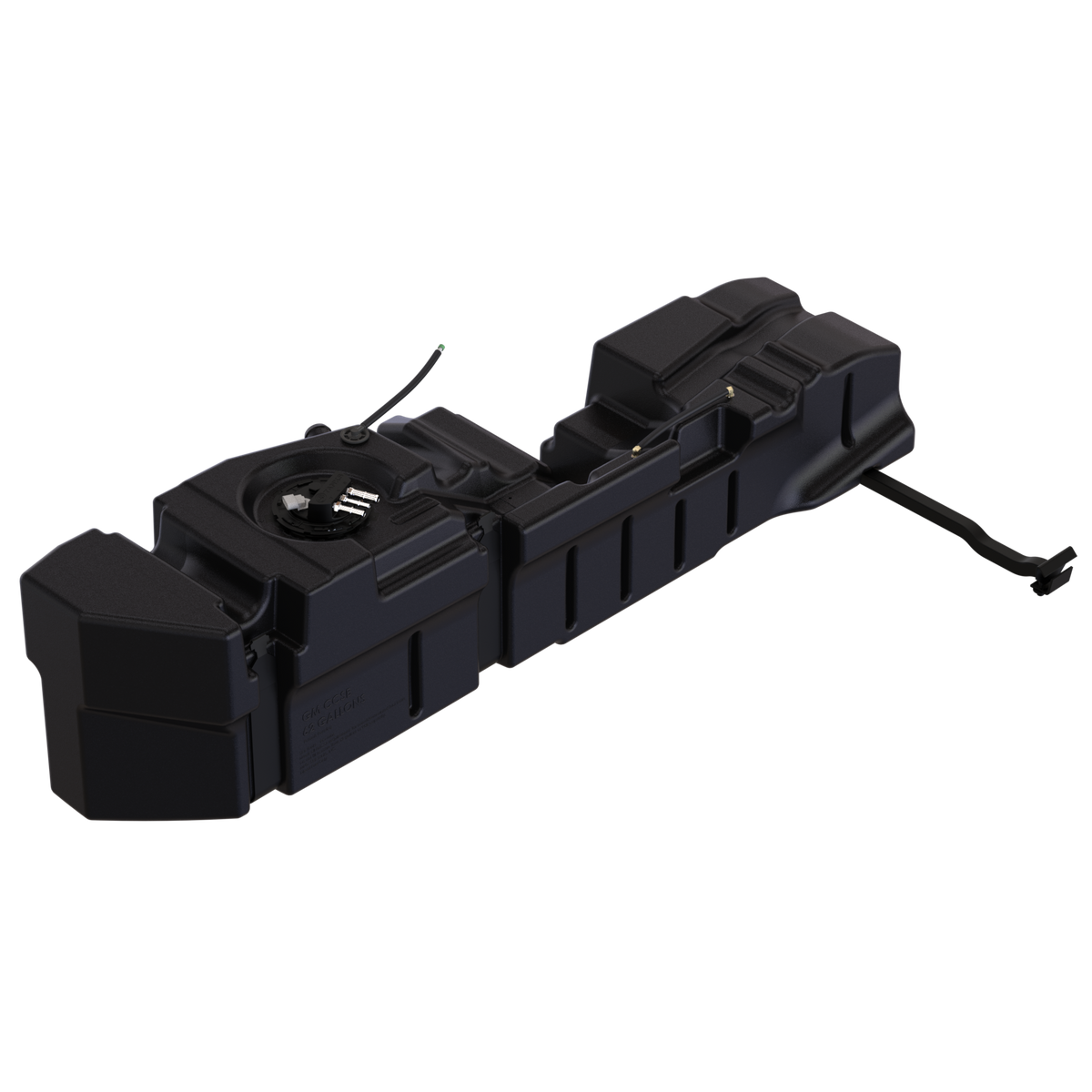

2001-2004 Duramax LB7 S&B 62 Gallon Fuel tank (10-1023)
Contact for availability
Heavy freight shipping required - additional costs may be issued depending on your location/product weight.
Regular price
$1,807.66 CAD
Product details
- Type Fuel Tank
- Vendor S&B Filters
- SKU 10-1023
- Volume 62 Gallons
Documentation
- Instructions View
Have any questions about this product?
2001-2004 Duramax LB7 S&B 62 Gallon Fuel tank (10-1023)
The 26-gallon OEM tank that came in your Duramax is simply not enough - the S&B 10-1023 bumps your capacity to 62 Gallons with no cutting, drilling, or modifications and installs in under 4 hours. Not only does it over double your carrying capacity, but it also includes a premium OEM-style sending unit and features a built-in sump which can be used for aftermarket lift pump installation, if desired. S&B recommends aftermarket lift pumps be installed according to the pump manufacturer's instructions only. The S&B sump will not cure typical "1/4 tank issues" common with aftermarket lift pumps
- Midship 62 Gallons (246 Litres for us Canucks)
- 3-4 Hour Install
- No Cutting Required
- OEM Style Sending Unit Mount
- Transfer Pump Suction
- Integrated Fuel Sump
- Anti-Wave Baffles
- Double Coated Stainless Steel Hardware
- Integrates with Factory Gauge
- Compatible w/ Gooseneck and 5th wheel
- Not compatible w/OE skid plate
- Dimensions 89.43" X 17.32" X 17.61"
- Drain: Yes
- Embedded fitting thread size: 1/2" NPT
- Ground Clearance compared to OE tank: 5" lower
- Sending Unit: S&B
- Straps Included
- Sump: Yes
- Transfer pump ready
- Dry weight 62lbs
GM Duramax
2001-2004 LB7
S&B replacement fuel tanks have a lifetime limited warranty for the original purchaser. If there is a problem with an S&B tank related to defect, materials or workmanship, S&B will replace it. All terms of the S&B Million Mile Limited Warranty also apply to S&B fuel tanks. Damage to an S&B fuel tank resulting from improper installation or use will not be covered by this warranty.
The distance to empty (DTE) on GM trucks can’t be reprogrammed, so it will show about half the mileage that is really left. This occurs with all aftermarket high-capacity fuel tanks. The bottom of the S&B tank has more surface area than the OE, so there will be a greater fuel reserve when the low fuel indicator comes on. The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically.
