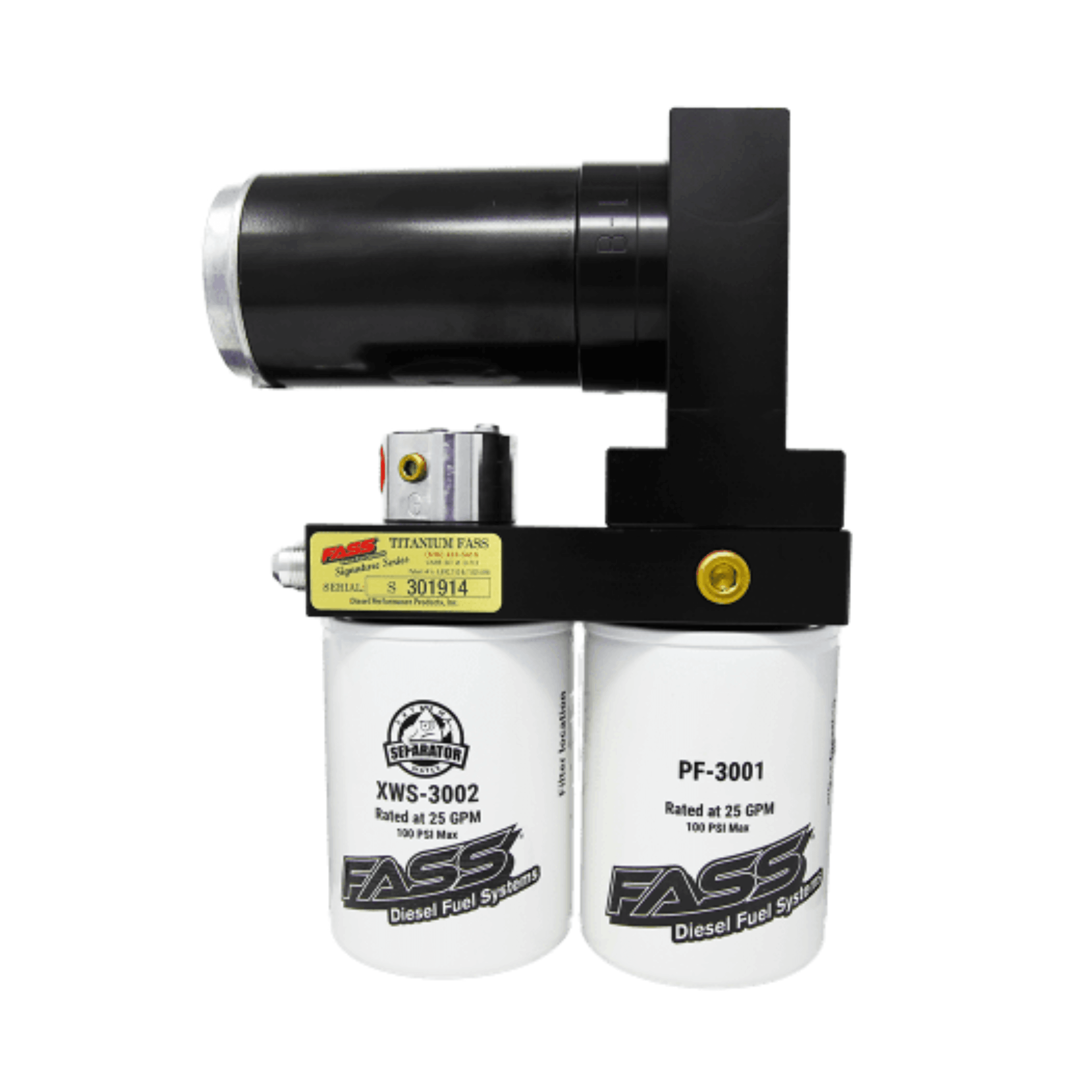

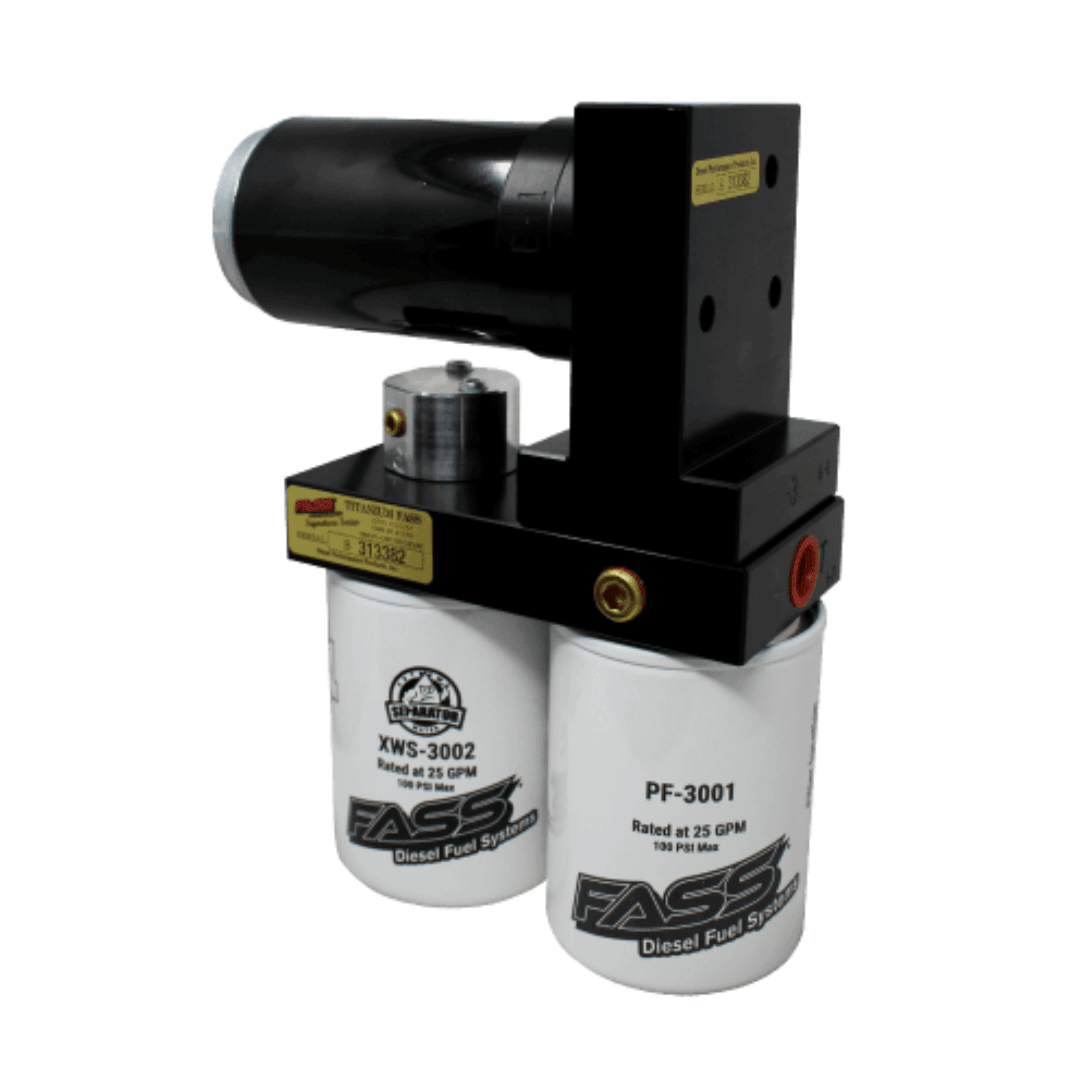

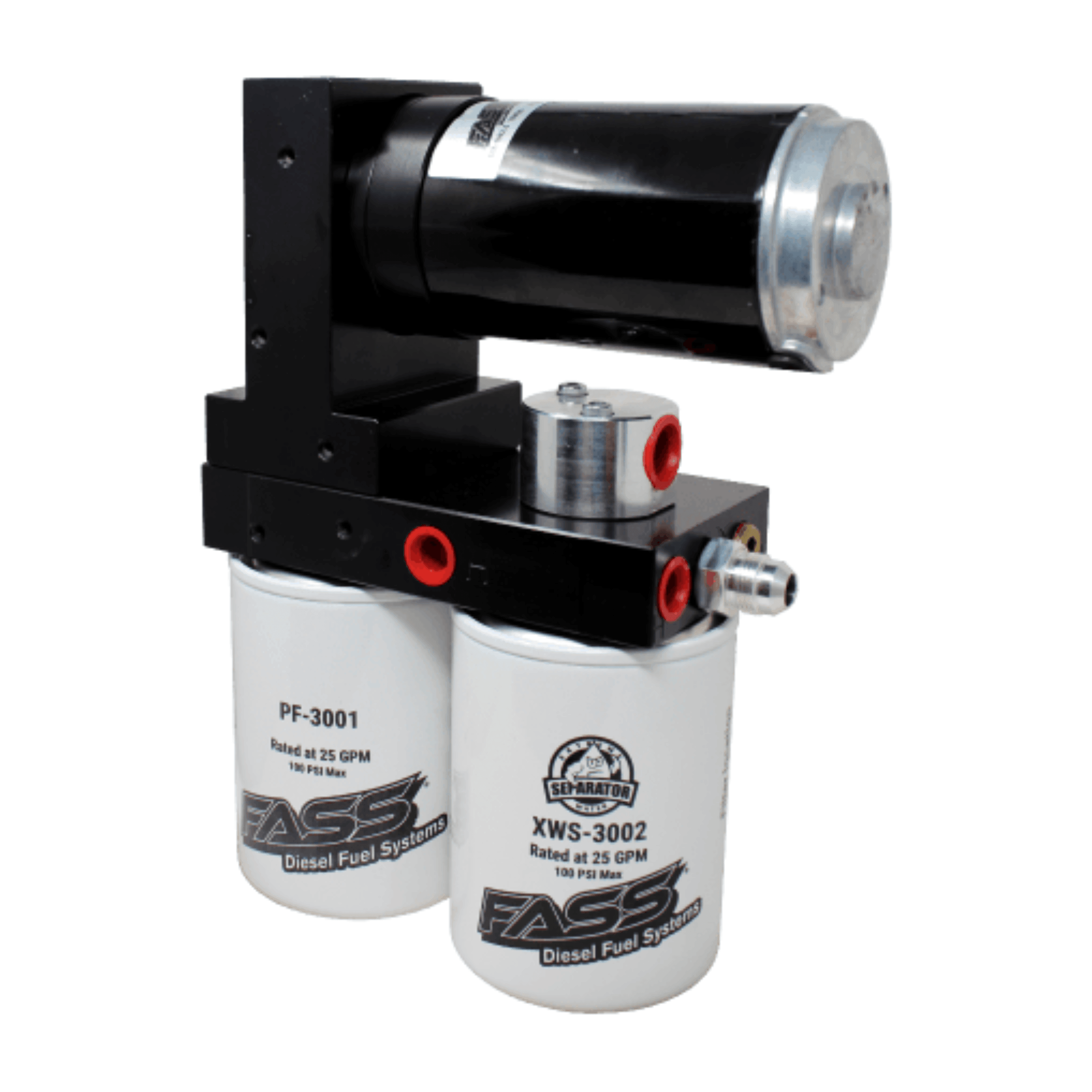

2008-2010 Powerstroke 6.4L 250GPH Signature Series Titanium Lift Pump (TSF16250G)

The Titanium Signature Series diesel fuel System was engineered by FASS Diesel Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration System in the diesel industry.  Rated at 250 gallons per hour and backed by our limited lifetime warranty the Titanium Signature Series fuel System can support your Ford Powerstroke 6.4L diesel engine with enough fuel for 900-1200 HP multiple fueling System upgrades.  A Titanium Signature Series fuel System also offers advanced filtration benefits that will help protect your Powerstroke’s injection Systems, effectively extending the life of both your Injection System and Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter and FASS  Diesel Fuel Systems patented air/vapor removal process. Powerstroke diesel engines are known for having injector failure issues; this can be caused by several different factors and FASS Filtration Systems is designed to eliminate those that are fuel related.

This kit includes a Bulkhead Fitting and Suction Tube.  Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return and features a 5/8” Suction Tube along with a ½” Fuel Return Port. This new and improved version from our previous Suction Tube allows the user to plum their FASS return line directly to their bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process. The pickup tube is fabricated out of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.

The Titanium Signature Series diesel fuel Systems are the superior fuel System and filtration System, in the diesel industry.  This is because here at FASS Diesel Fuel Systems we focus on perfecting our Systems and how they are engineered, taking the extra steps that our competitors ignore while they rush to get product out the door.  By doing this we have less than a 2% failure rating with our motor and a design that implements unique design features you can only get with FASS Diesel Fuel Systems
